Product Datasheet Search Results:

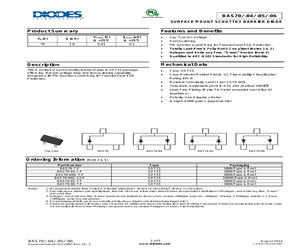

4 Pages, 88 KB, Original- BAS70-05-7-F
- Diodes
- DIODE SCHOTTKY 70V 200MW SOT23-3 - BAS70-05-7-F
5 Pages, 373 KB, Original- BAS70-05-7-F
- Diodes Inc
- Rectifier Diode Schottky 70V 0.07A 5ns 3-Pin SOT-23 T/R
4 Pages, 467 KB, Original- BAS70-05-7-F
- Multicomp
- Diode Schottky 70V 0.07A 3-Pin SOT-23 T/R
4 Pages, 467 KB, Original- BAS70-05-7-F
- Multicomp
- Small Signal Schottky Diode, Dual Common Cathode, 70 V, 70 mA, 1 V, 100 mA, 125 °C
Product Details Search Results:
Diodes.com/BAS70-05-7-F
{"Category":"Discrete Semiconductor Products","Package / Case":"TO-236-3, SC-59, SOT-23-3","Diode Configuration":"1 Pair Common Cathode","Product Photos":"SOT23","PCN Design/Specification":"Green Encapsulate 15/May/2008","Reverse Recovery Time (trr)":"5ns","Datasheets":"BAS70, -04, -05, -06","Standard Package":"1","Voltage - Forward (Vf) (Max) @ If":"1V @ 15mA","Voltage - DC Reverse (Vr) (Max)":"70V","RoHS Information":"RoHS Cert of Compliance","Current - Reverse Leakage @ Vr":"100nA @ 50V","Online Catalog"...
1853 Bytes - 02:16:30, 19 October 2024
Diodes.com/BAS70-05-7-F
{"Avg. Forward Curr (Max)":"0.07","Mounting":"Surface Mount","Rectifier Type":"Schottky Diode","Rev Recov Time":"5(ns)","Peak Forward Voltage":"1(V)","Operating Temperature Classification":"Military","Peak Rep Rev Volt":"70(V)","Peak Non-Repetitive Surge Current":"0.1(A)","Forward Current":"70(mA)","Product Height (mm)":"0.98(mm)","Peak Reverse Recovery Time":"5(ns)","Forward Voltage":"1(V)","Package Type":"SOT-23","Peak Non-Repetitive Surge Current (Max)":"0.1","Configuration":"Dual Common Cathode","Maximu...
1788 Bytes - 02:16:30, 19 October 2024
Multicomp/BAS70-05-7-F
{"Peak Reverse Current":"0.1(uA)","Peak Non-Repetitive Surge Current":"0.1(A)","Rectifier Type":"Schottky Diode","Peak Reverse Recovery Time":"5(ns)","Maximum Forward Current":"70(mA)","Product Height (mm)":"1(mm)","Rad Hardened":"No","Packaging":"Tape and Reel","Operating Temperature Classification":"Military","Operating Temp Range":"-65C to 150C","Package Type":"SOT-23","Peak Rep Rev Volt":"70(V)","Mounting":"Surface Mount","Power Dissipation (Max)":"200(mW)","Peak Forward Voltage":"1(V)","Configuration":...
1493 Bytes - 02:16:30, 19 October 2024
Multicomp.com.au/BAS70-05-7-F
{"Diode Configuration:":"Dual Common Cathode","Forward Current If(AV):":"70 mA","Diode Case Style:":"SOT-23","MSL:":"-","No. of Pins:":"3","Forward Voltage VF Max:":"1 V","Operating Temperature Max:":"125 \u00b0C","Repetitive Reverse Voltage Vrrm Max:":"70 V","Operating Temperature Min:":"-55 \u00b0C","Forward Surge Current Ifsm Max:":"100 mA","Packaging:":"Tape & Reel","SVHC:":"To Be Advised"}...
1451 Bytes - 02:16:30, 19 October 2024
